PE carbon spiral reinforced pipe production line

Model:φ50/70

φ65/85

φ80/100

φ100/125

φ125/150

φ150/175

φ175/200

φ200/225 (Diameter of steel wire inside the pipe (mm):1.5-2.5)

1. Technical Specifications

PECarbon Pipe Specifications

Coil Quantity(m)

Diameter of steel wire inside the pipe (mm)

Weight comparison( kg/m)

Ring stiffness (KN/㎡)

Elongation at break (%)

Steel pipe

PVC pipe

PE carbon pipe

PVC pipe

PE carbon pipe

PVC pipe

PE carbon pipe

φ50/70

200

1.5

4.01

0.5

0.4

2.2

5.8

185

355

φ65/85

200

1.5

6.31

0.65

0.6

2.6

7.0

190

386

φ80/100

200

2.0

8.71

1

0.8

3.7

8.2

212

482

φ100/125

100

2.5

10.82

19

1.1

4.9

10.8

243

550

φ125/150

100

2.5

13.5

2.2

1.4

5.8

11.6

306

589

φ150/175

50

2.5

18.13

3

1.9

7

13.8

342

612

φ175/200

50

2.5

21.59

4.2

2.2

8.2

14.5

348

636

φ200/225

40

2.5

29.15

6.5

2.5

9

17.3

360

685



2.Products Display

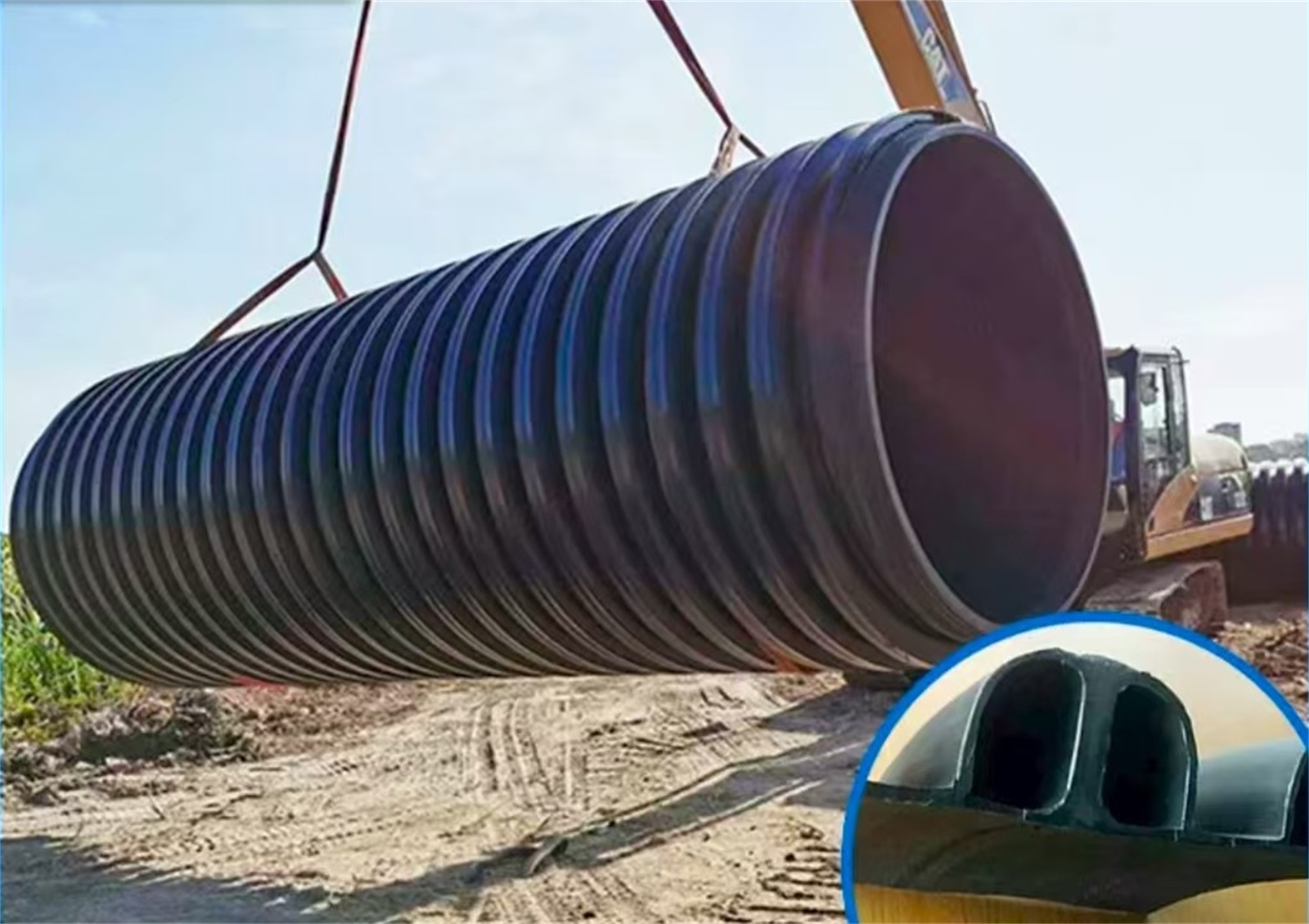

Features and applications of the products produced:

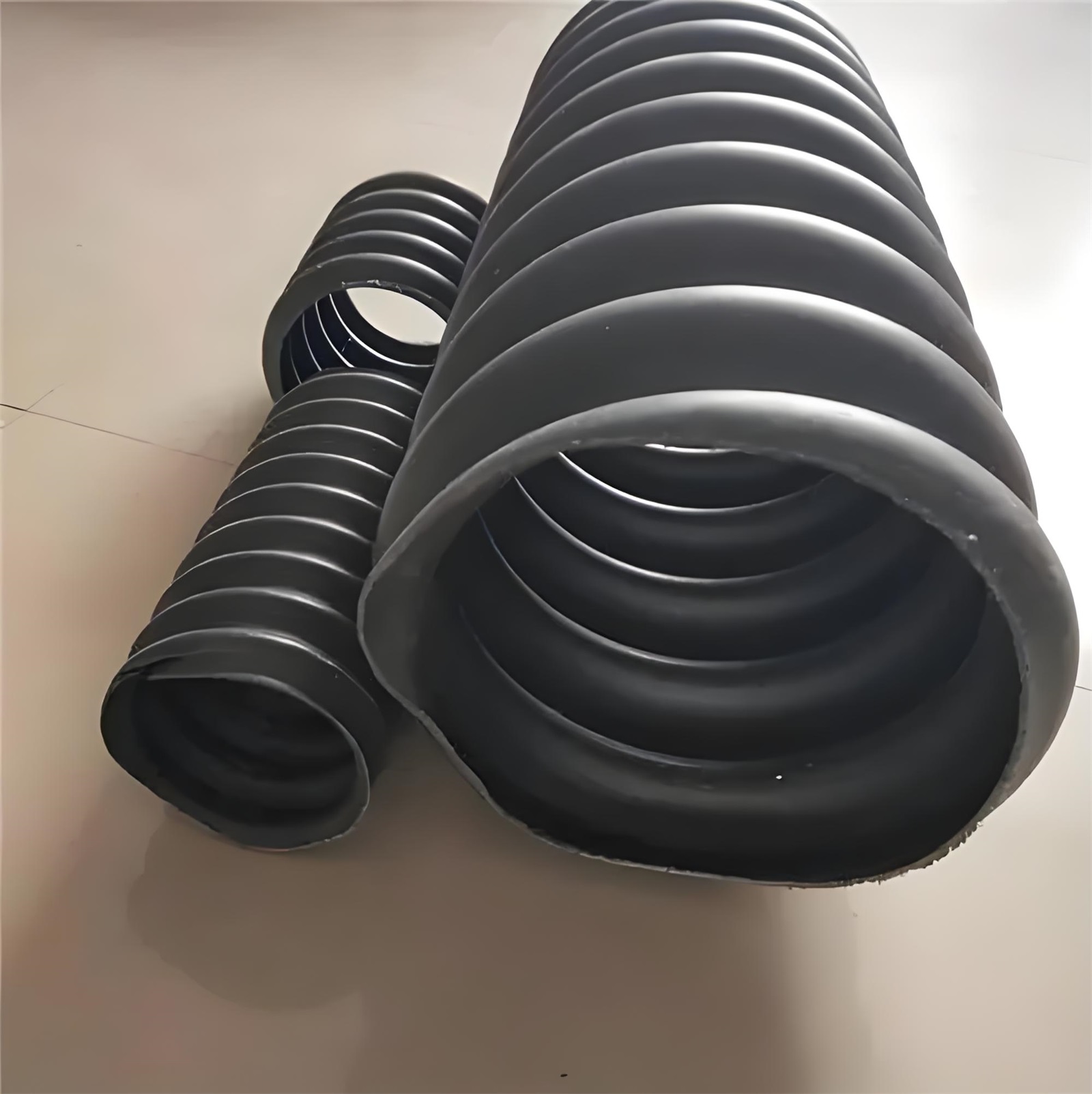

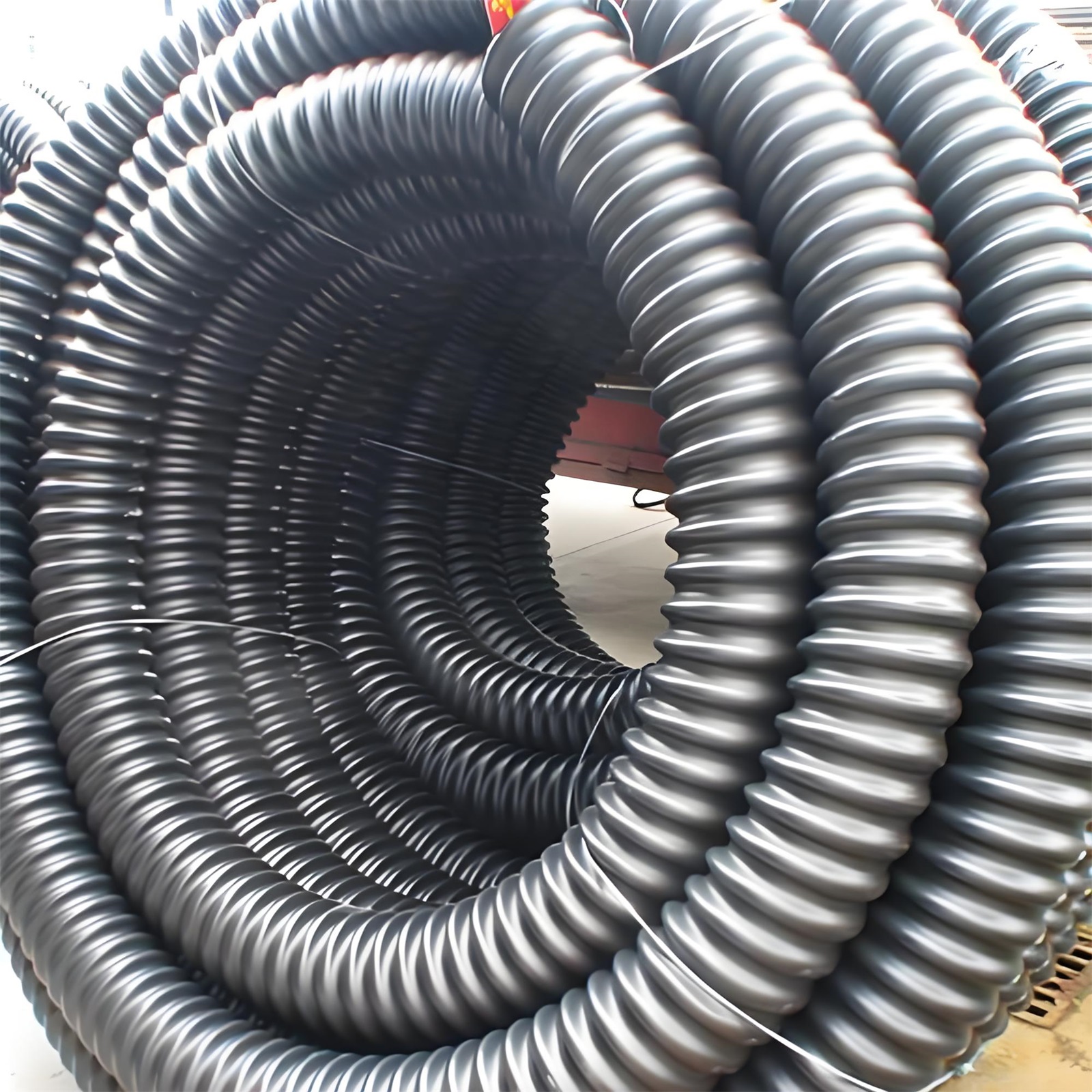

It has a smooth inner wall spiral structure; compared with flat wall tubes, it effectively reduces the friction on the wires and optical cables, and the direct friction coefficient is reduced by 60% compared with flat wall tubes. Because of its unique inner wall spiral, it provides good ventilation and heat dissipation space for wires and optical cables, thereby effectively extending the service life of wires and optical cables and reducing maintenance costs.

It has the advantages of high toughness, high corrosion resistance, high insulation resistance, good flame retardancy, light weight, long life, and not easy to deform with crustal changes

3.Application



It is widely used in underground projects of urban street lamp lines, underground projects of laying electric railway power and communication cables, construction and renovation projects of highway power and communication facilities, residential community construction projects, parks and large underground cable projects. It is currently an ideal underground cable sheath pipe.



4. Production line composition:

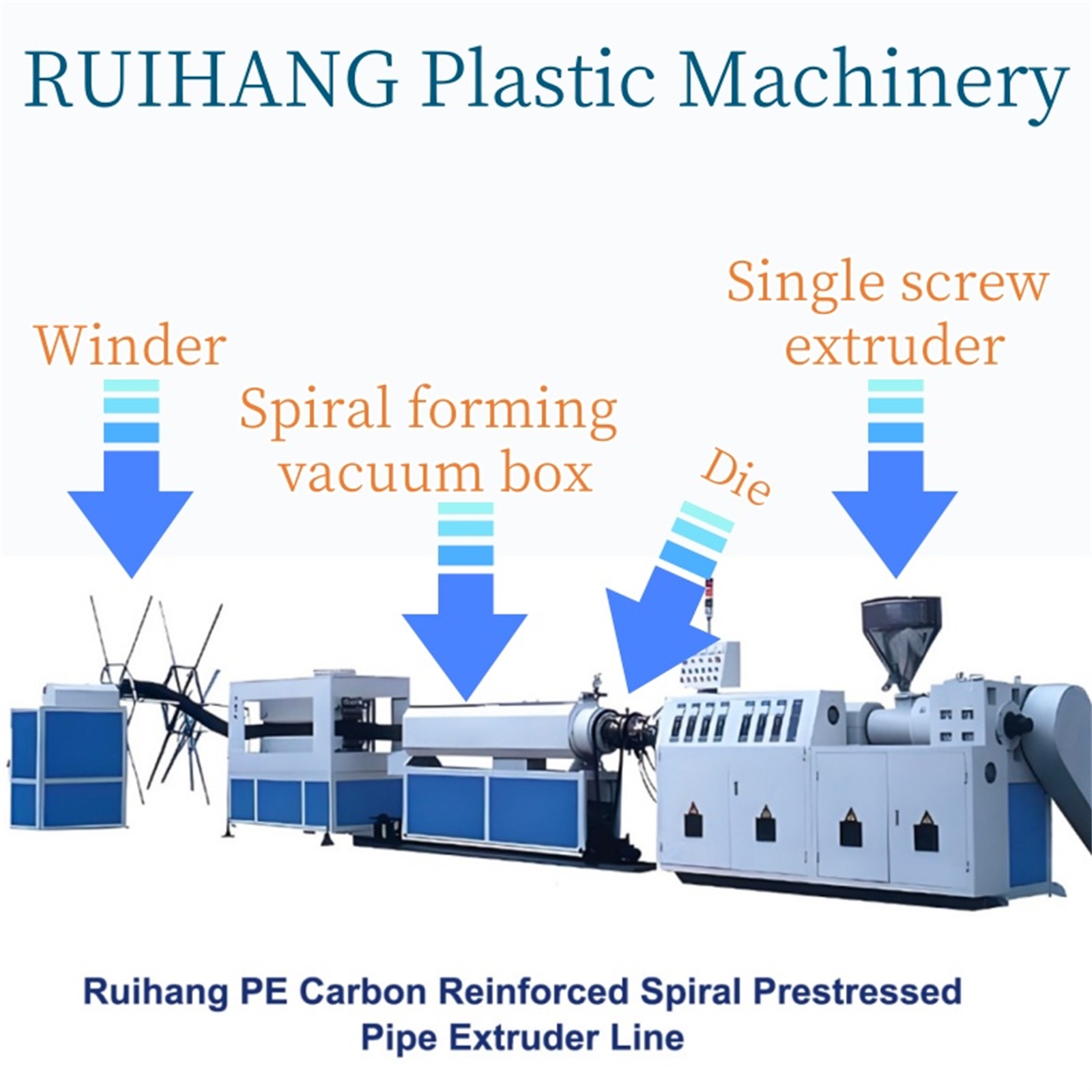

Single screw extruder, forming die, spiral forming vacuum box, traction machine, winder (including spiral copper sleeve)



5.Main features of the production line:

  1. Equipped with a special single-screw extruder for PE, the special design structure has the advantages of fast extrusion and fast plasticization
  2. Professional spiral extrusion mold, reasonable flow channel design, and the extruder make the inner and outer walls of the pipe smooth
  3. After repeated tests, the spiral copper sleeve has a reasonable match for the slot width and length, which makes the pipe forming speed fast, saves raw materials, and has a significant cooling effect. The speed can reach 2.5Mmin
  4. The spiral forming vacuum box is made of 304 stainless steel, with an efficient water pump and a special spray design, which brings fast forming speed.



6.Service Commitment

  • Free on-site installation guidance and operational training
  • 24/7 technical support with remote assistance
  • Lifetime maintenance consultation



7.Why Choose Us

  1. Proven Technology – Over 15 years of extrusion machine manufacturing experience
  2. Cost Saving – Energy-efficient design lowers your production costs
  3. Global Service – Technicians can be sent to to your facility for on-site installation and worker training
