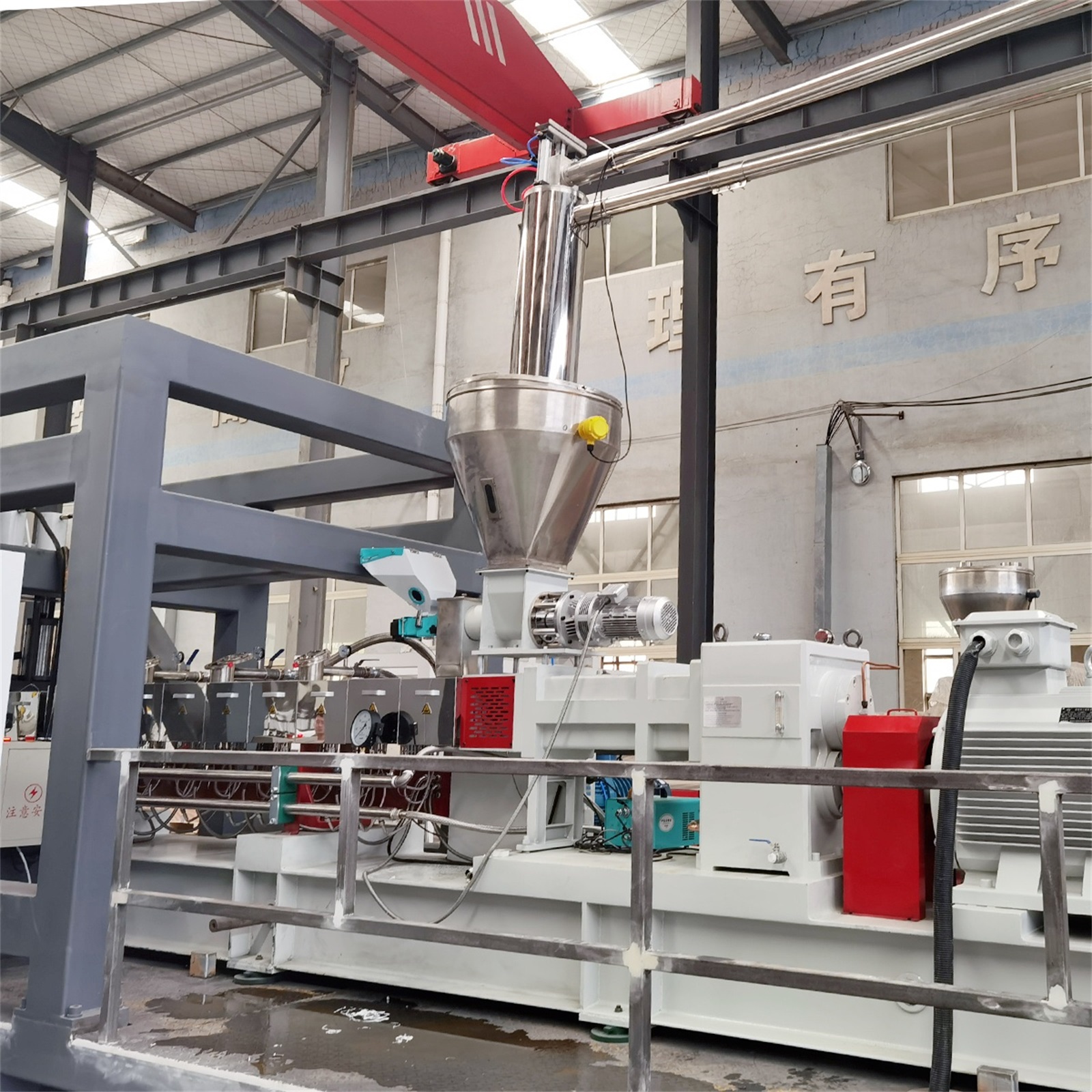

PET Sheet Twin-Screw Extrusion Line

Ruihang PET Sheet Production Line specializes in high-quality PET sheet manufacturing. PET sheets feature excellent processability, high clarity (no water marks), and eco-friendly degradability, with certified food-grade safety.

Width: 650mm–1800mm
Production Capacity: 350kg/h–1200kg/h
Products Application: Food packaging,consumer goods packaging, and electronic product

Technical Specifications

Machine Model	RH-75	RH-85
Extruder	Φ75 Parallel Twin Screw	Φ85 Parallel Twin Screw
Product Width(mm)	650-1800mm	650-1800mm
Product Thickness(mm)	0.15-2.0	0.15-2.0
Production Capacity(kg/h)	350-500	600-800
Installed Capacity(KW)	295	450

Key Features

Superior Plasticizing Performance

Advanced twin-screw design ensures thorough melting of all PET materials, including APET, PETG, CPET, and 100% recycled flakes.

Intelligent Control System

Siemens servo motors and Ethernet-based control ensure precise speed, pressure, and material flow with less than 0.1% error.

High Efficiency & Safety

Fully automatic winding system operates without manual intervention, improving productivity and worker safety.

Service Commitment

Free installation guidance and operational training
24/7 technical support with remote assistance
Lifetime maintenance consultation
