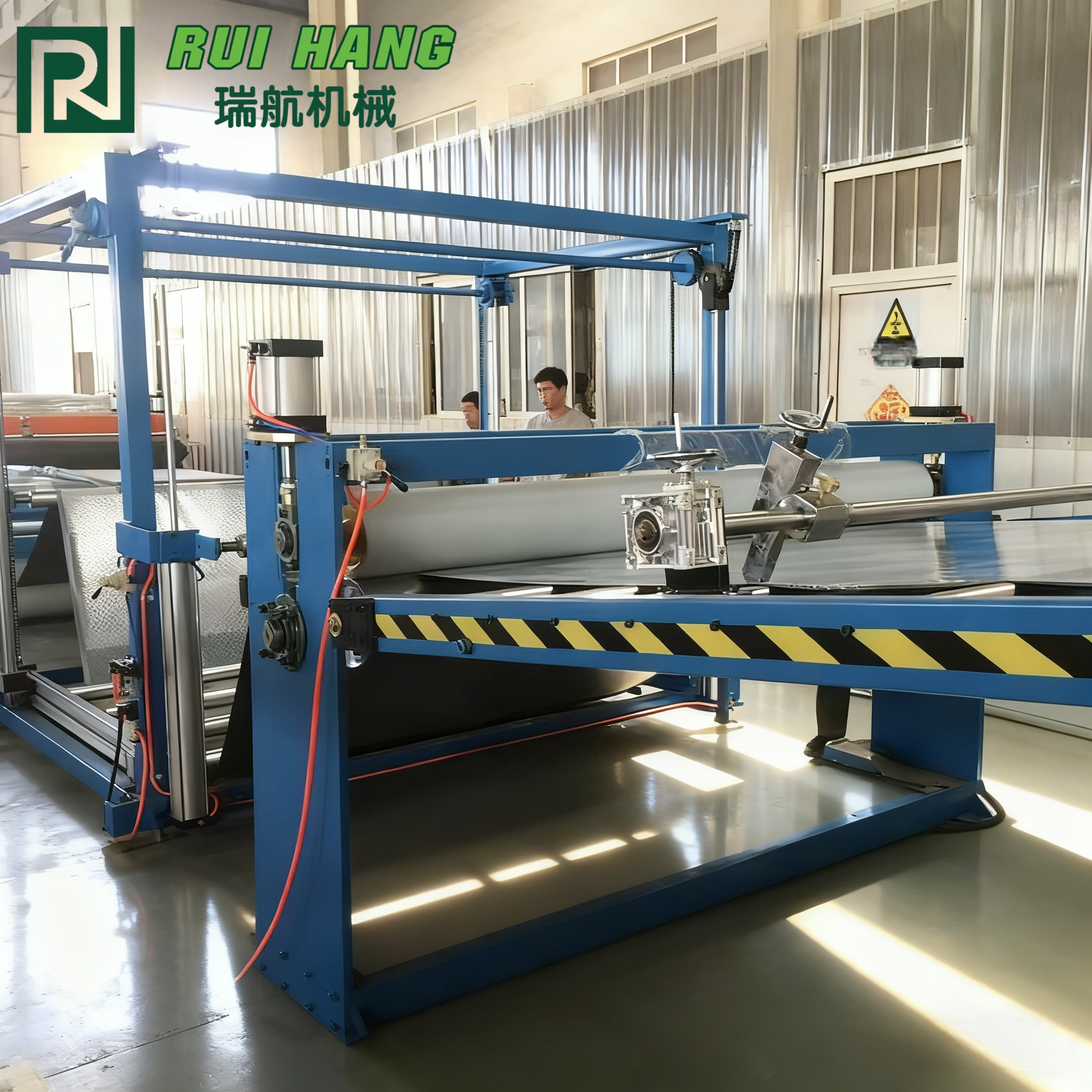

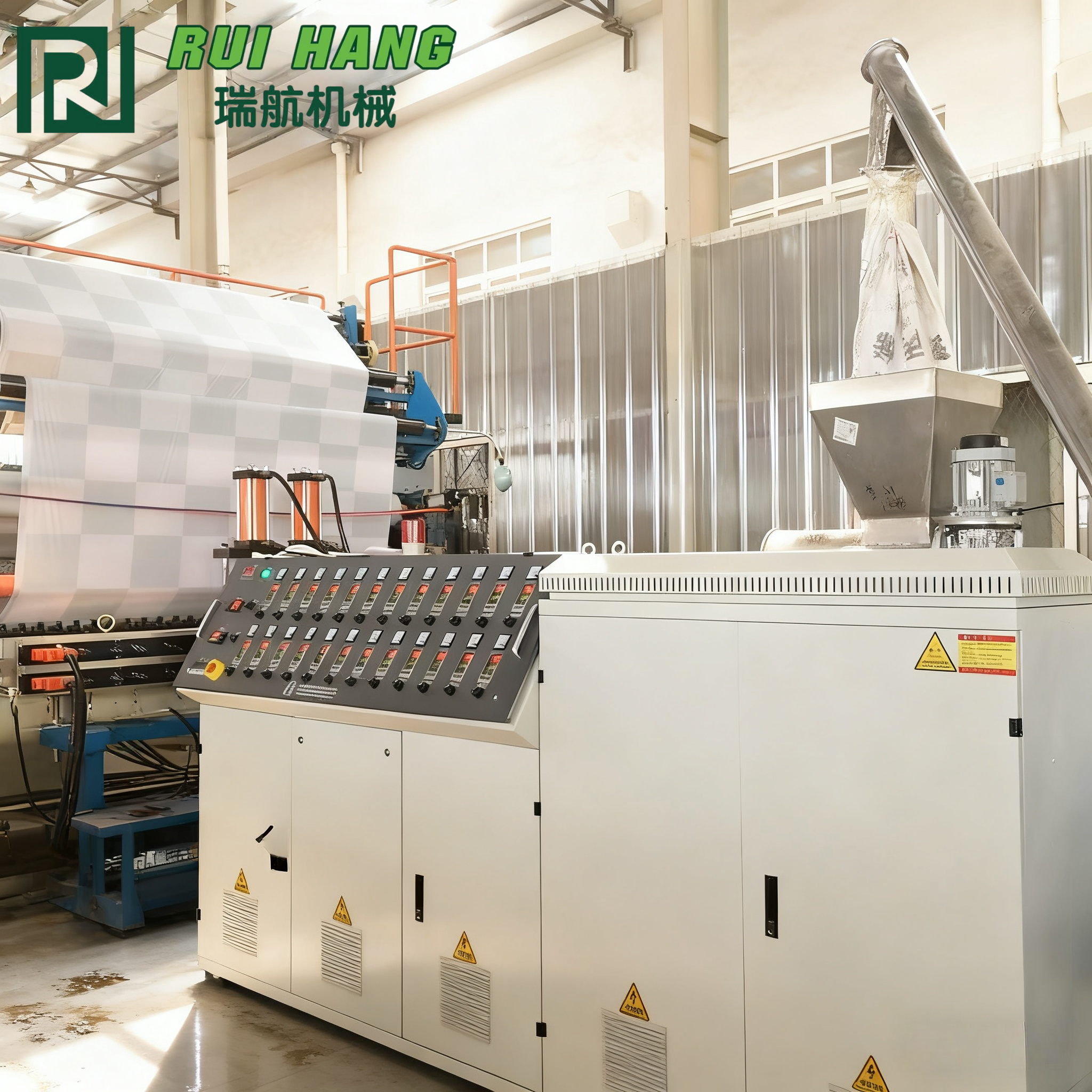

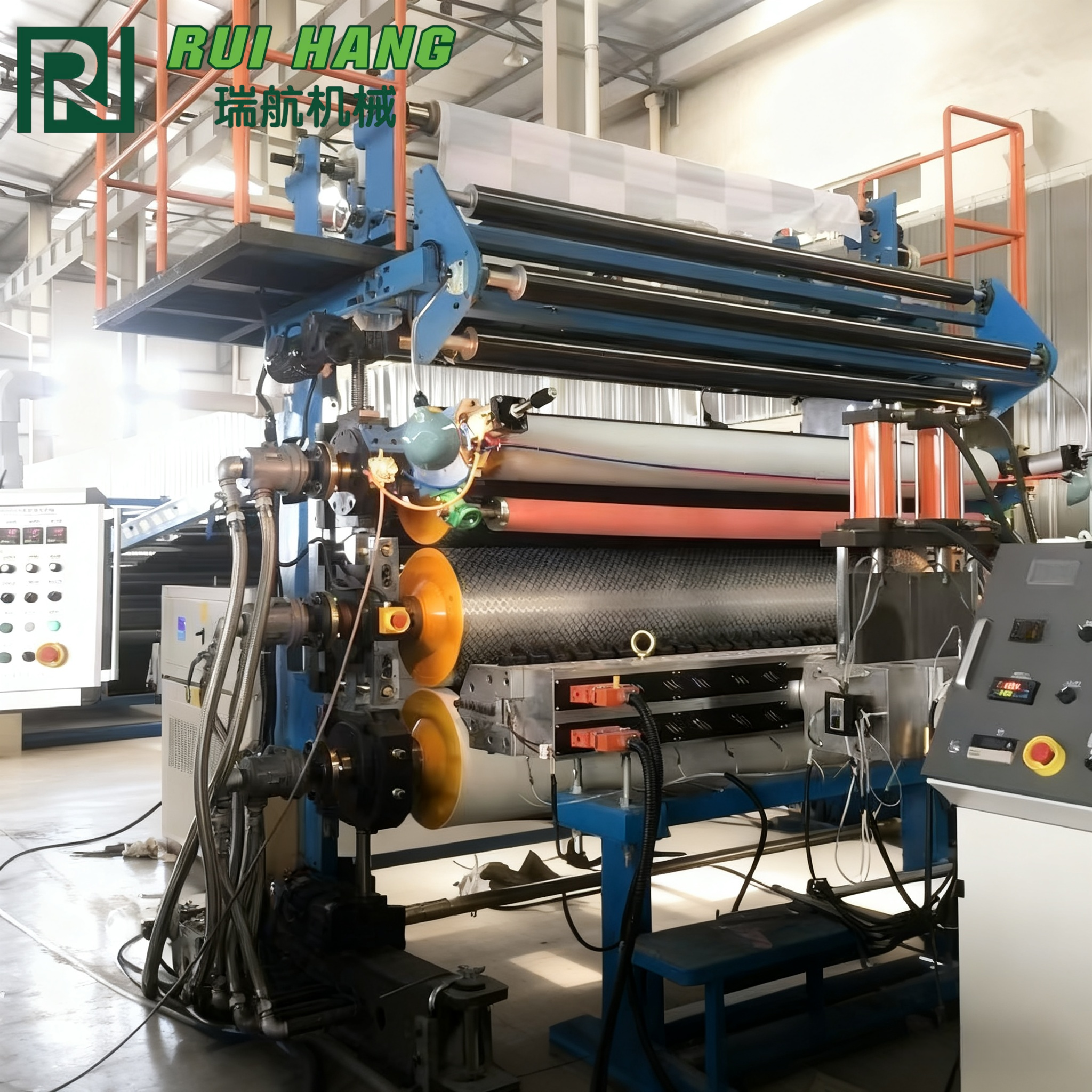

PVC sheet extrusion line

RUIHANG Plastic Machinery Co., Ltd. manufactures PVC sheet production lines that are highly efficient, automated, and low-cost. The PVC sheets produced are a common type of plastic product, widely used in packaging, construction, electronics, automotive, and other industries.

  • Model:SJZ80/156-1500/SJZ92/188-2200/RH 105/120/150(Product Width(mm) : 200–2400)
  • Production Capacity: 350kg/h～550 kg/h
  • Products Application:Building materials, industrial products, packaging industry, consumer goods, special applications

 Technical Specifications

PVC Transparent Sheet

Model

Extruder Type

Products Width

Products Thickness

Main Motor Power(kw)

Max. Capacity(kg/h)

SJZ80/156-1500

SJZ80/156

1220mm

0.2-3.0mm

75

350

SJZ92/188-2200

SJZ92/188

2000mm

1.0-3.0mm

110

550

PVC Transparent Soft Sheet:

Model

Product Width

Products Thickness

Capacity Range

RH 105/120/150

200-2400mm

0.2-6mm

100-500kg/h

Advantages of producing products

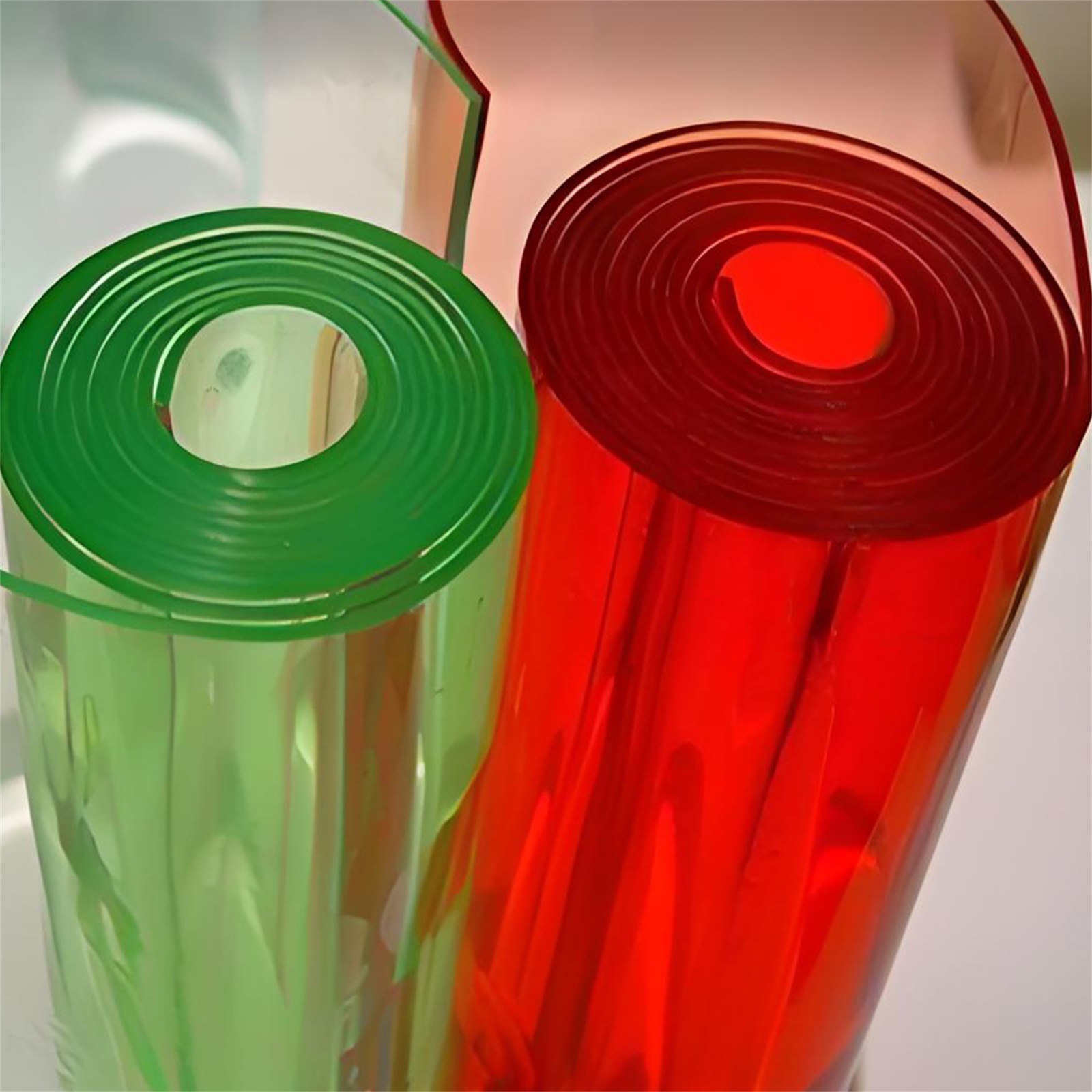

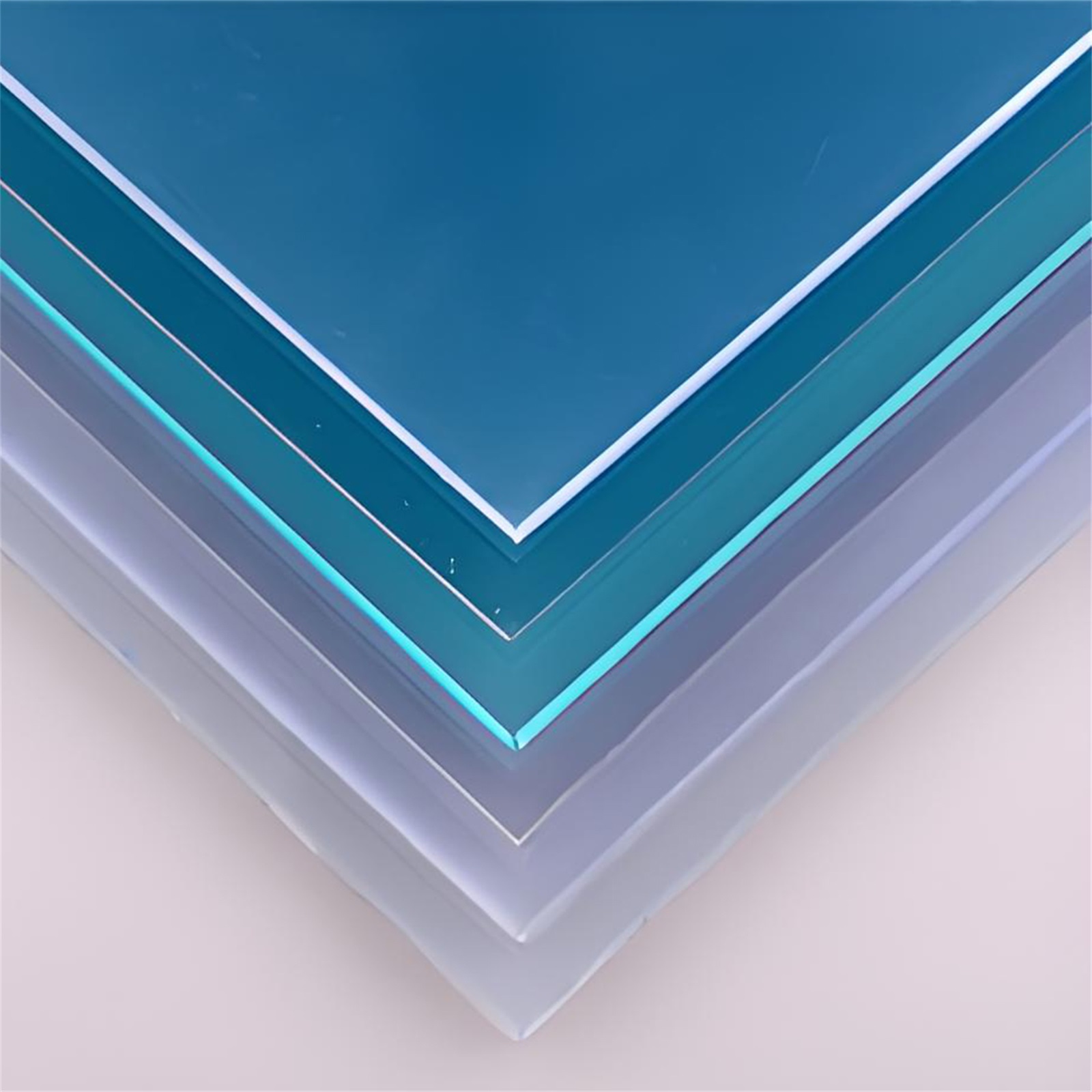

PVC extruded transparent sheets are flame retardant and self-extinguishing, high quality and low price, high transparency, good surface gloss, few crystal points, small water marks, strong impact resistance and easy to form.



























Technological advantages





·Thickness and flatness control

·Enhanced stability

·Modular configuration
